Air Linker Type Spring For UR And American Market
PRODUCT DETAIL
This item is suitable for Air Suspension Pickup
1. The oem number is 2913 100 T25, the specification is 100*38, the raw material is 51CrV4
2. The item total has two pcs, first pcs with eye,

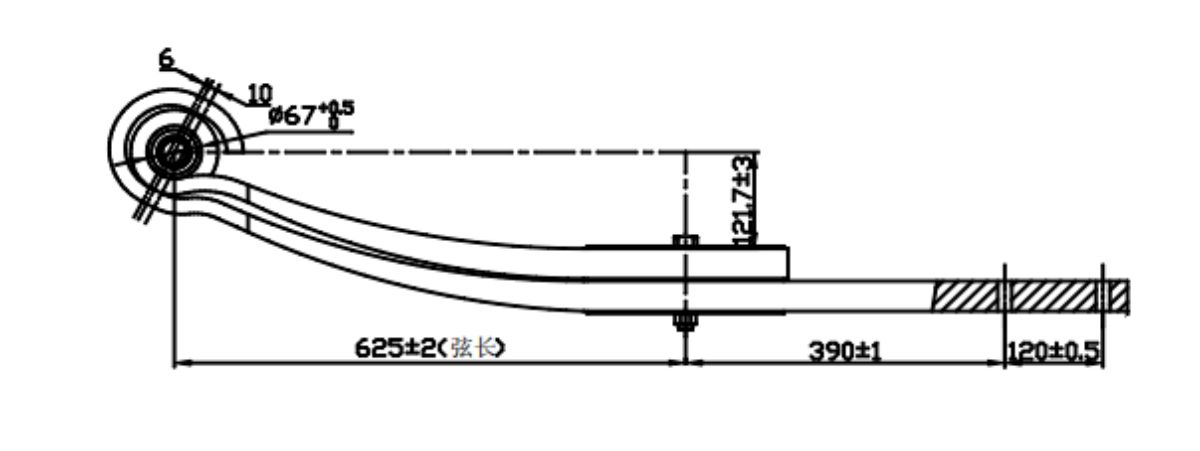

the length from the centrl of the eye to the centrl hole is 625mm.
The second pcs is Z type, the length from the cover to the end is 1165mm
3. The painting use electrophoretic painting, the color is drak grey

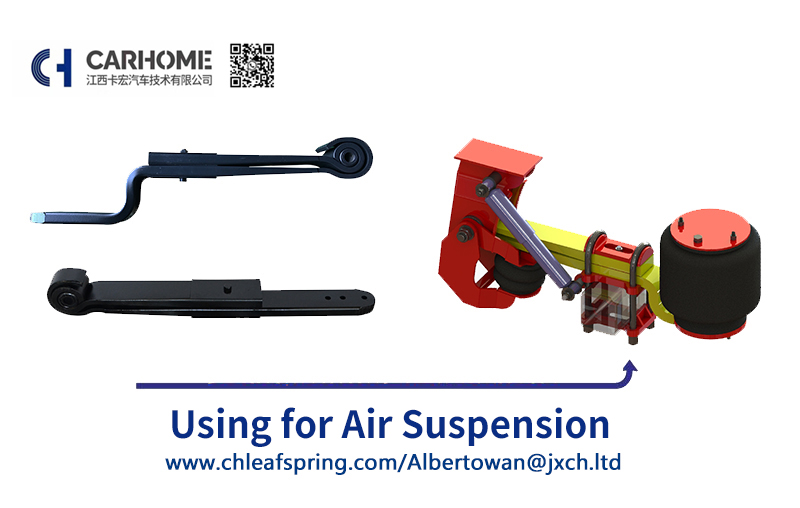

4. It use with air kit together is the air suspension
5. We also can produce base on client's drawings design
Trailer and semi-trailer air suspensions are more and more widely used in heavy tractor vehicles due to their unique advantages.
The trailing arm, as the guiding element in the air suspension system, plays a bearing and guiding role.
A two-piece air linker is usually used in the air suspension system of trailer and semi trailer, which is composed of a long guide arm 1 and a short guide arm 2 superimposed and fixed.
At the same time, there is also a single-leaf trailing arm with a single-leaf spring.
The air suspension device is applied between the frame and the axle. It includes a guide arm bracket, a bolt assembly, a spring guide arm and an air spring.
The guide arm bracket is connected to the frame, and the spring guide arm is fixed to the axle through the bolt assembly Above, the spring guide arm is a single piece structure,
one end of the spring guide arm is connected with the guide arm support, the other end of the spring guide arm is connected with the air spring by two bolts, and the end of the air spring away from the spring guide arm is connected with the car.
The frame is connected, a connecting beam is arranged between the two bolts, and a shock absorber is arranged between the bolt assembly and the guide arm support.
A semi-trailer with a single-piece guide arm air suspension device can reduce its own weight and reduce costs.
Applications
What's the leaf spring ?
Leaf springs are a simple form of suspension spring commonly used in vehicles, especially in the past.
It consists of one or more slender curved metal rods or "leaves" stacked on top of each other and fixed at the ends to a frame and axle.
When the vehicle encounters bumps or uneven road surfaces, leaf springs absorb impact forces and provide support, thereby improving the vehicle's ride comfort and handling.
Leaf springs have been used for centuries, dating back to horse-drawn carriages and early automobiles. They are essential for providing a smooth and controlled ride over rough terrain.
However, as technology has advanced, leaf springs in modern vehicles have been largely replaced by more complex suspension systems, such as coil springs and air suspension. Despite this, leaf springs are still used in some heavy-duty vehicles, including trucks, buses, and commercial vehicles, due to their durability and ability to support heavy loads.
The construction of a leaf spring usually involves multiple steel strips of varying lengths and thicknesses, with the longest strips forming the main blades and the shorter strips being called auxiliary blades.
The blades are clamped together and usually have an eyelet on each end for attachment to the vehicle. When the vehicle hits a bump, the blades flex and flatten to absorb the impact, then return to their original shape to provide continued support.
To sum up, leaf springs are a type of suspension spring used in vehicles to provide support, improve ride comfort, and absorb the impact of uneven road surfaces.
Although leaf springs have largely been replaced by more advanced suspension systems, they still play a vital role in the design of some heavy-duty vehicles due to their durability and load-carrying capabilities.
REFERENCE

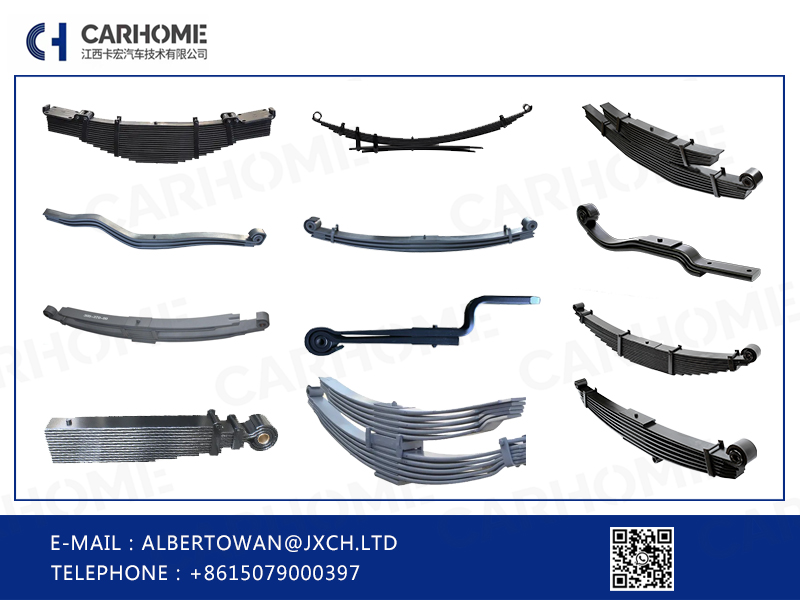

Provide different types of leaf springs which include conventional multi leaf springs, parabolic leaf springs, air linkers and sprung drawbars.
In terms of vehicle types, it include heavy duty semi trailer leaf springs, truck leaf springs, light duty trailer leaf springs, buses and agricultural leaf springs.
PRODUCTION

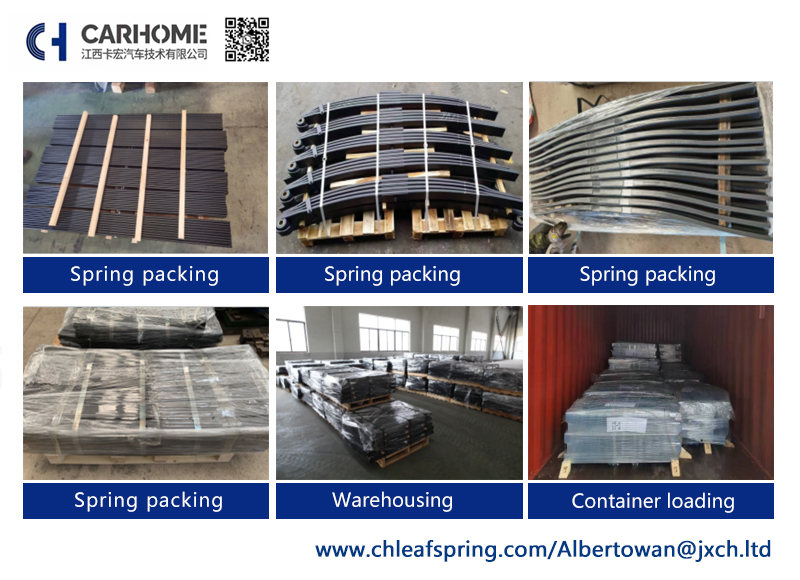

Packing
QC equipments
Advantage
Quality aspect
Thickness less than 20mm. We use material SUP9
Thickness from 20-30mm. We use material 50CRVA
Thickness more than 30mm. We use material 51CRV4
Thickness more than 50mm. We choose 52CrMoV4 as the raw material

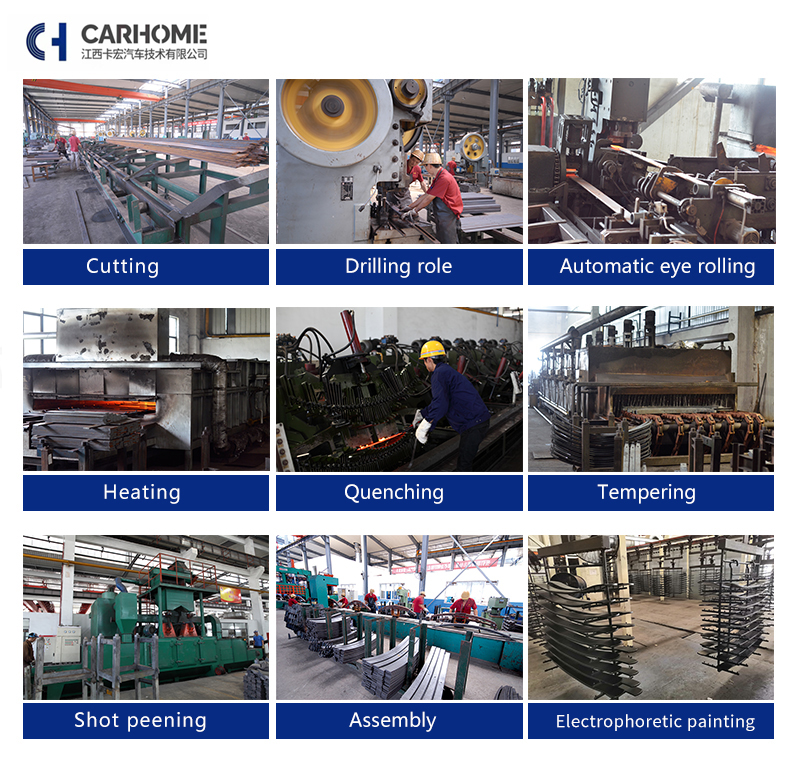

We strictly controlled the steel temperature around 800 degree.
we swing the spring in the quenching oil among 10 seconds according to the spring thickness.
Each assembling spring set under stress peening .
Fatigue test can reach over 150000 cycus
Each item use electrophoretic paint
Salt spray testing reach 500 hours
Technical aspect
1、Product technical standards：implementation of IATF16949
2、More than 10 spring engineers' support
3、Raw material from the top 3 steel mills
4、Finished products tested by Stiffness Testing Machine, Arc Height Sorting Machine; and Fatigue Testing Machine
5、Processes inspected by Metallographic Microscope, Spectrophotometer, Carbon Furnace, Carbon and Sulfur Combined Analyzer; and Hardness Tester
6、Application of automatic CNC equipment such as Heat Treatment Furnace and Quenching Lines, Tapering Machines, Blanking Cutting Machine; and Robot-assitant production
7、Provide technical support, such as engineering consultation, to help our clients choose the right type of spring for their applications
8、Manufacture durable, reliable, and customized springs to meet the specific needs of our customers.
Service aspect
1、Excellent team with rich experience
2、Think from the perspective of customers, deal with the needs of both sides systematically and professionally, and communicate in a way that customers can understand
3、Offer tailored design solutions, prototyping, and rapid production capabilities to meet urgent demands
4、Superior customer service, efficient order processing, and timely delivery
