Hojas de ballesta 120*18mm 10 leaf trailer leaf springs truck spare parts

Short Description:

Part No. Trailer Leaf Spring Paint Electrophoretic paint
Spec. 120*18MM Model Trailer Leaf Spring
Material SUP9 MOQ 100 SETS
Free Arch 180 Development Length 1510
Weight 120 KGS Total PCS 10 PCS
Port SHANGHAI/XIAMEN/OTHERS Payment T/T,L/C,D/P
Delivery Time 15-30 days Warranty 12 months

Product Detail

Product Tags

Detail

微信图片_20241009163905

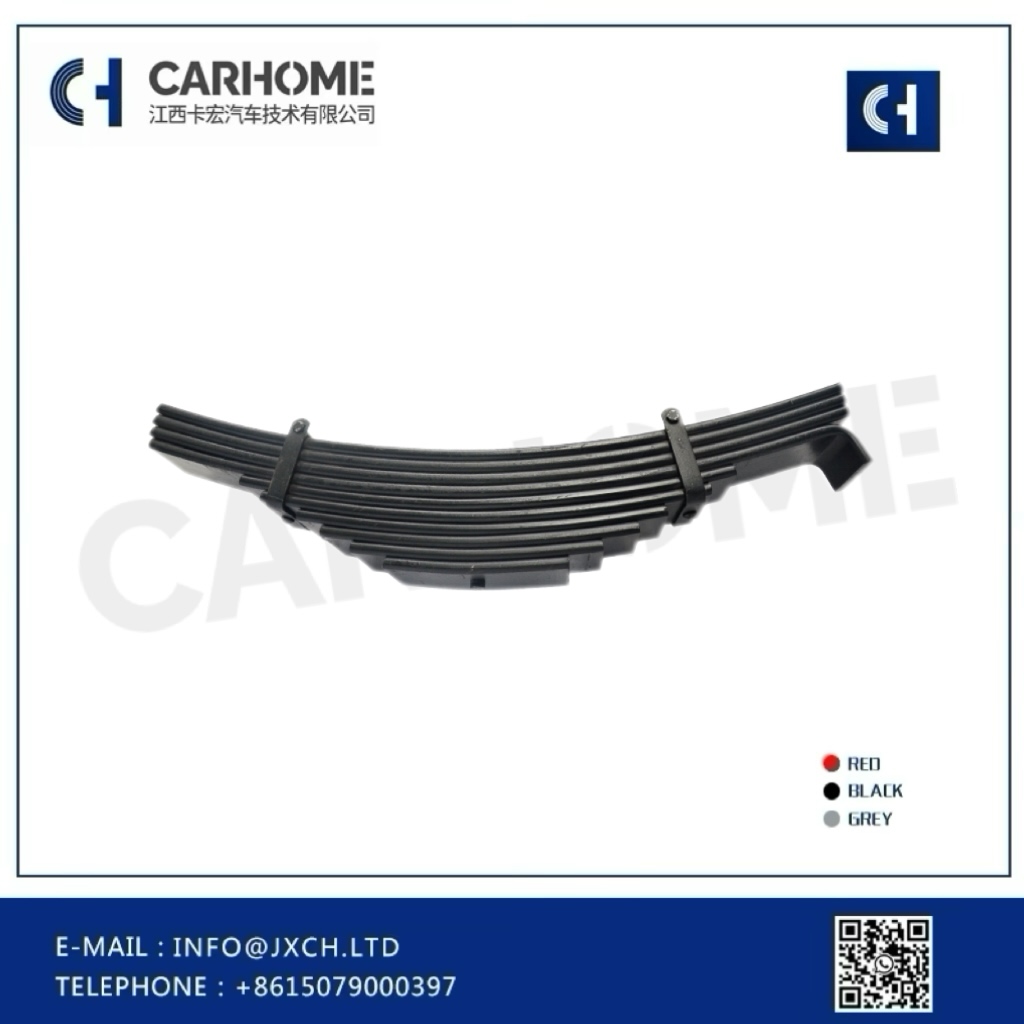

The leaf spring is suitable for light trucks

1. This leaf spring total  10 pcs, the size is 120*18mm

2. Raw material is sup9

3. The free arch is 180mm, the development length is 1510

4. The painting use electrophoretic painting

5. For Trailer Leaf Spring

6. The weight is 120KGS .





What does a leaf spring do?

The main function of leaf springs is to provide comfort to the passengers by minimizing the vertical vibration caused by the nonuniformity of road geometry. Studies show that the desired leaf spring material should have high strength and low modulus of elasticity in the longitudinal direction





Our advantage :

1.We have cooperated with many OEM company in International market .

2. We have more than 5000 types of leaf springs .

3. We use electrophoretic spray paint . the finish and the ability of anti-rust is better

4. We pass IATF16949 certificate

5. We have 8 production lines . with fully automated equipment.

6. Our capacity is 120,000 Tons one year .







CARHOME INTRODUCTION

CARHOME a leading manufacturer of parabolic and conventional leaf springs. The wide product range is suitable for all sorts of vehicles, from the lightest utility vehicles to the heaviest trucks, built for long-haul or off-road missions.

After the rolling and forging operations, the spring leaves are quenched and tempered to achieve the required mechanical properties. They are then shot-peened to increase the fatigue life. Magnetic particle inspection tests are carried out when required.

Using a specific process, CARHOME can manufacture high stress springs. The high performances obtained enable a weight reduction and, as a result, allow the vehicle payload to be increased.

Applications

微信截图_20241016170321

How do I know what kind of leaf spring for my light truck needs?

To determine the appropriate leaf spring for your light truck, you'll need to consider several factors:
1. Know Your Truck: Identify the make, model, and year of your light truck.
2. Consider Load: Determine the typical load your truck carries to choose the appropriate weight capacity.
3. Check Current Spring: Examine the specifications of your current leaf spring if you're replacing it.
4. Suspension Type: Know whether your truck has a normal spring, parabolic spring, or multi leaf spring suspension.
5. Seek Expert Advice: Consult mechanics or online resources if you're unsure.
6. Manufacturer Recommendations: Check with the truck's manufacturer for compatibility.
7. Online Tools: Utilize online databases to find compatible leaf springs.

Reference

1

Provide different types of leaf springs which include conventional multi leaf springs, parabolic leaf springs, air linkers and sprung drawbars.
In terms of vehicle types, it include heavy duty semi trailer leaf springs, truck leaf springs, light duty trailer leaf springs, buses and agricultural leaf springs.

Packing & Shipping

1

QC equipments

1

Our advantage

Quality aspect:

1) Raw Material

Thickness less than 20mm. We use material SUP9

Thickness from 20-30mm. We use material 50CRVA

Thickness more than 30mm. We use material 51CRV4

Thickness more than 50mm. We choose 52CrMoV4 as the raw material

2) Quenching Process

We strictly controlled the steel temperature around 800 degree.

We swing the spring in the quenching oil among 10 seconds according to the spring thickness.

3) Shot Peening

Each assembling spring set under stress peening.

Fatigue test can reach over 150000 cycles.

4) Electrophoretic Paint

Each item use electrophoretic paint

Salt spray testing reach 500 hours

Technical aspect

1、Customization: Our factory can tailor leaf springs to meet specific customer requirements, such as load capacity, dimensions, and material preferences.
2、Expertise: Our factory’s staff possess specialized knowledge and skills in designing and manufacturing leaf springs, ensuring high-quality products.
3、Quality control: Our factory implements rigorous quality control measures to guarantee the reliability and durability of its leaf springs.
4、Production capacity: Our factory has the capability to produce leaf springs in large quantities, meeting the demands of various industries and customers.
5、Timely delivery: Our factory’s efficient production and logistics processes enable it to deliver leaf springs within specified timelines, supporting customer schedules.

Service aspect

1、Timely delivery: The factory’s efficient production and logistics processes enable it to deliver leaf springs within specified timelines, supporting customer schedules.
2、Material selection: The factory offers a range of material options for leaf springs, including high-strength steel, composite materials, and other alloys, catering to diverse needs.
3、Technical support: The factory provides technical assistance and guidance to customers regarding leaf spring selection, installation, and maintenance.
4、Cost-effectiveness: The factory’s streamlined production processes and economies of scale result in competitive pricing for its leaf springs.
5、Innovation: The factory continually invests in research and development to enhance leaf spring design, performance, and efficiency.
6、Customer service: The factory maintains a responsive and supportive customer service team to address inquiries, provide assistance, and ensure overall satisfaction with its leaf spring products and services.
