OEM Quality Bi-metal Bush for Heavy Truck and Semi Trailer

Short Description:

Part No. ISUZU,TOYOTA,HINO… Payment T/T,L/C,D/P
Bush Size 30*38*88 Model BI-METAL BUSH
Port SHANGHAI/XIAMEN/OTHERS MOQ 500 PCS
Delivery Time 15-30 days Warranty 12-36 months

Product Detail

Product Tags

Detail

detail

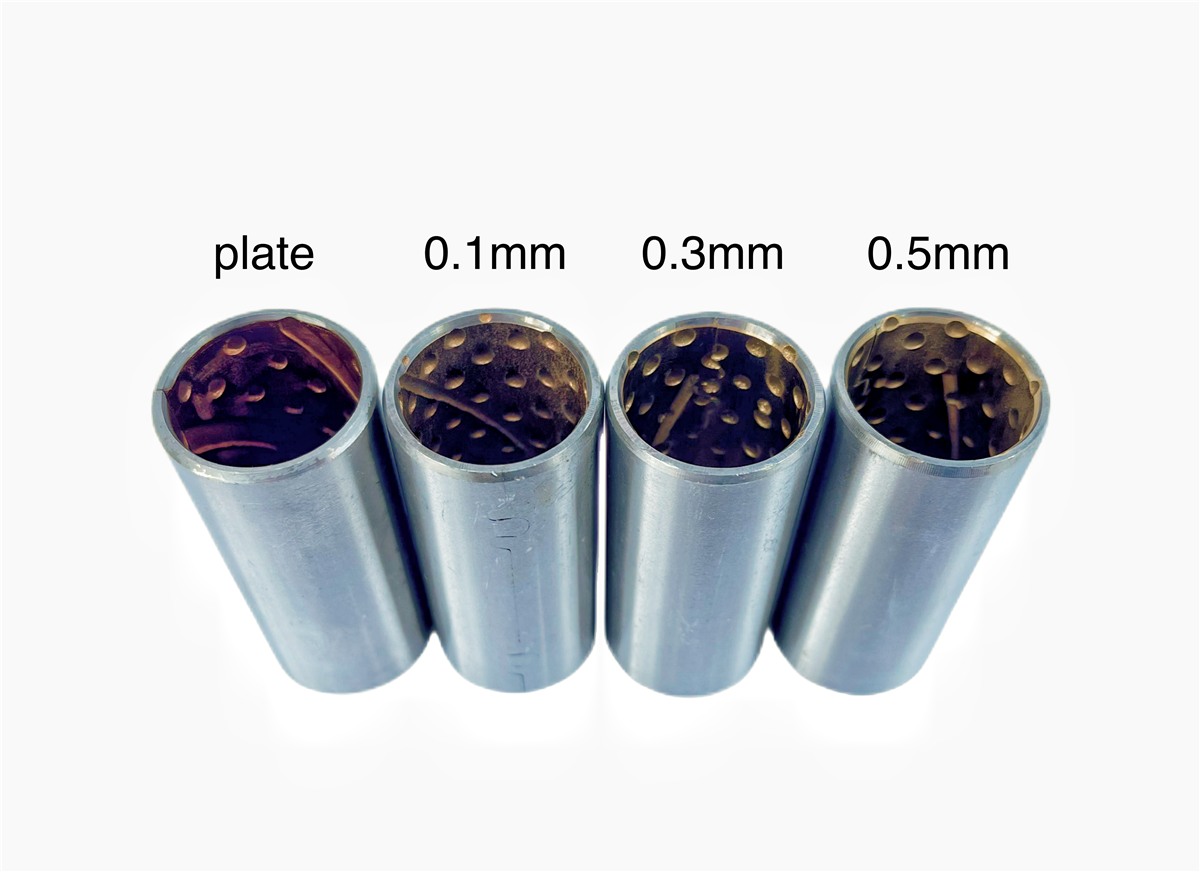

BIMETAL A Thickness of copper
0.1MM 0.3MM 0.5MM
BIMETAL B Copper Plate

Applications

application (1)
application (2)

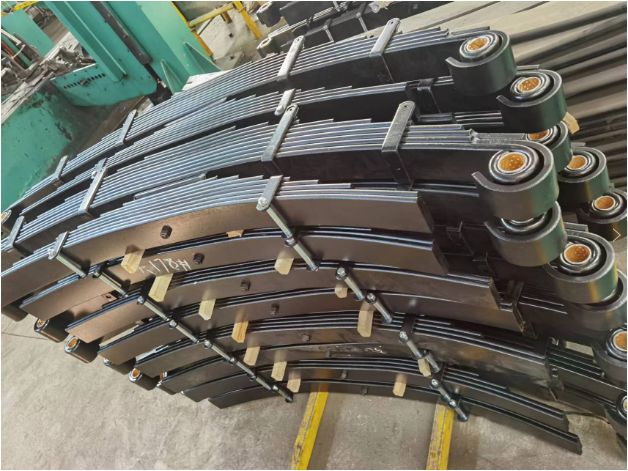

The bI-metal bush is mainly applicable to the leaf spring with EYE

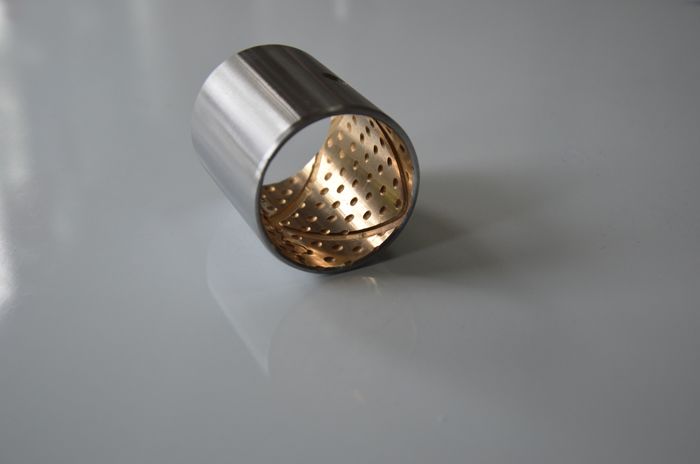

"Using carbon steel as the substrate and sintered bronze powder on the surface. Suitable for swinging and rotating movements under high loads and low speeds, with low friction coefficient, good wear resistance, long service life, and good anti bite performance. The surface of the copper alloy layer can be processed into various types of oil grooves, oil storage pits, oil pockets, etc. according to the working conditions, to be suitable for situations where refueling is impossible or difficult.
The products are widely used in supporting wheel shaft sleeves, supporting wheel shaft sleeves, tensioning wheel shaft sleeves for engineering machinery, balancing shaft sleeves for automobiles, steel plate sleeve sleeves, steering knuckle main shaft sleeves, connecting rod shaft sleeves, valve rocker arm shaft sleeves, camshaft shaft sleeves, differential shaft sleeves, thrust washers, plunger pump side plates, gear pump side plates, etc."

Reference

Leaf Spring Bush
Leaf Spring Bush 30*25*68
Leaf Spring Bush 30*25*74
Leaf Spring Bush 30*25*78
Leaf Spring Bush 30*25*88/89
Leaf Spring Bush 31*25*68
Leaf Spring Bush 31*25*74
Leaf Spring Bush 31*25*78
Leaf Spring Bush 32*25*65
Leaf Spring Bush 32*25*67/68
Leaf Spring Bush 32*25*78
Leaf Spring Bush 34*28*68/69
Leaf Spring Bush 34*28*74
Leaf Spring Bush 34*28*78
Leaf Spring Bush 34*28*88
Leaf Spring Bush 35*30*74
Leaf Spring Bush 35*30*88
Leaf Spring Bush 36*28*68
Leaf Spring Bush 36*30*68
Leaf Spring Bush 36*30*74
Leaf Spring Bush 36*30*78
Leaf Spring Bush 36*30*88/89
Leaf Spring Bush 36*30*98
Leaf Spring Bush 37*30*74
Leaf Spring Bush 37*30*88
Leaf Spring Bush 38*30*78
Leaf Spring Bush 38*30*86
Leaf Spring Bush 38*30*88
Leaf Spring Bush 38*32*78
Leaf Spring Bush 38*32*88
Leaf Spring Bush 38*32*98
Leaf Spring Bush 40*30*88/89
Leaf Spring Bush 40*30*98
Leaf Spring Bush 40*32*88
Leaf Spring Bush 40*32*98
Leaf Spring Bush 40*35*74
Leaf Spring Bush 40*35*88
Leaf Spring Bush 42*30*88
Leaf Spring Bush 42*32*78
Leaf Spring Bush 42*32*88
Leaf Spring Bush 42*35*74
Leaf Spring Bush 42*35*88/89
Leaf Spring Bush 42*35*98
Leaf Spring Bush 43*35*100
Leaf Spring Bush 45*38*98
Leaf Spring Bush 46*38*79
Leaf Spring Bush 46*38*88
Leaf Spring Bush 46*40*88
Leaf Spring Bush 46*40*98
Leaf Spring Bush 48*40*97/98
Leaf Spring Bush 48*38*100
Leaf Spring Bush 46*38*100
Leaf Spring Bush 50*38*89
Leaf Spring Bush 46*38*45
Leaf Spring Bush 46*38*90
Leaf Spring Bush 44.5*38*45
Leaf Spring Bush 44.5*38*90
Balance/Trunnion Shaft Bush
Trunnion Shaft Bush 85*80*70
Trunnion Shaft Bush 110*100*90/91
Trunnion Shaft Bush 120*110*55
Trunnion Shaft Bush 120*110*65
Trunnion Shaft Bush 120*110*75
Trunnion Shaft Bush 120*110*78
Trunnion Shaft Bush 120*110*110
Trunnion Shaft Bush 121*115*87/90
Trunnion Shaft Bush 122*110*110
Trunnion Shaft Bush 124*113*78
Trunnion Shaft Bush 125*115*78
Trunnion Shaft Bush 131*121*83
Trunnion Shaft Bush 131*121*90
Trunnion Shaft Bush 131*125*90/91
Trunnion Shaft Bush 134*121*83
Trunnion Shaft Bush 135*121*83
Trunnion Shaft Bush 135*125*83
Balance Beam Bush
Balance Beam Bush 60*50*50/55
Balance Beam Bush 62*50*55
Balance Beam Bush 65*60*40
Balance Beam Bush 65*60*60
Balance Beam Bush 70*60*55
Balance Beam Bush 72*60*55
Balance Beam Bush 75*70*55
Balance Beam Bush 80*70*55
Balance Beam Bush 85*75*60
Balance Beam Bush 85*80*70

Packing & Shipping

packing

Our advantage

1.OEM Quality
2.Using high-quality rubber raw materials
3.Strong rust resistance, unaffected by weather and grease
4.1-3 year warranty period for product quality assurance
5.Acceptable custom trademarks
6.Before shipment, 100% quality inspection must be conducted before shipment can be made

advantage
