Sup9 for Trailer Semi-Trailer Car Trucks Dump Truck Pickup

Short Description:

Part No.	MAZ BT50 4X4 REAR	Paint	Electrophoretic paint
Spec.	60×8/13	Model	Pickup
Material	SUP9	MOQ	100 SETS
Free Arch	Main128mm±6，Vice15mm±5	Development Length	995
Weight	11.4 KGS	Total PCS	4 PCS
Port	SHANGHAI/XIAMEN/OTHERS	Payment	T/T,L/C,D/P
Delivery Time	15-30 days	Warranty	12 months

Send email to us

Product Detail

Product Tags

Detail

The leaf spring is suitable for 4x4 Pickup

1. The item total has 4 pcs, the raw material size is 50*7 for first and second leaf, the third is 50*6, and the fourth leaf is 50*15
2. Raw material is SUP9

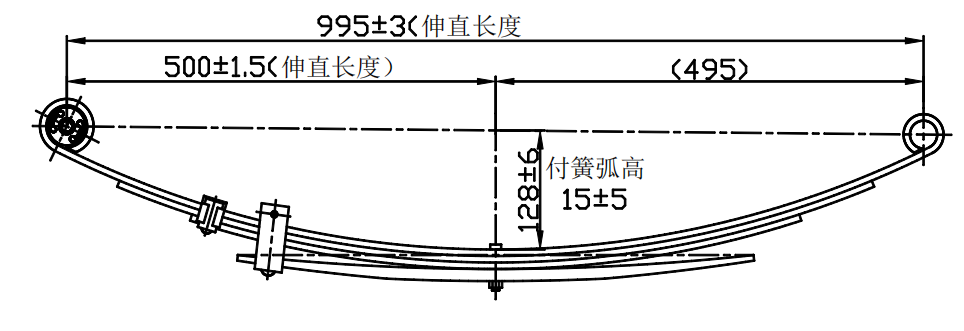

3. The main free arch is 128±6mm, and the helper free arch is 15±5mm, the development length is 995, the centre hole is 8.5
4. The painting use electrophoretic painting
5. We also can produce base on client's drawings to design

Pickup 4x4 leaf springs part number:

SN	OEM NUMBER	APPLICATION	SN	OEM NUMBER	APPLICATION
1	FOR002A	PICKUP 4X4 LEAF SPRING	13	TOY008C	PICKUP 4X4 LEAF SPRING
2	FOR002B	PICKUP 4X4 LEAF SPRING	14	TOY009B	PICKUP 4X4 LEAF SPRING
3	FOR002C	PICKUP 4X4 LEAF SPRING	15	TOY009C	PICKUP 4X4 LEAF SPRING
4	HOLD004BD/S	PICKUP 4X4 LEAF SPRING	16	TOY009D	PICKUP 4X4 LEAF SPRING
5	HOLD004BN/S	PICKUP 4X4 LEAF SPRING	17	TOY009E	PICKUP 4X4 LEAF SPRING
6	HOLD004CD/S	PICKUP 4X4 LEAF SPRING	18	TOY010BD/S	PICKUP 4X4 LEAF SPRING
7	HOLD004CN/S	PICKUP 4X4 LEAF SPRING	19	TOY010BN/S	PICKUP 4X4 LEAF SPRING
8	HOLD006B	PICKUP 4X4 LEAF SPRING	20	TOY010CD/S	PICKUP 4X4 LEAF SPRING
9	HOLD006C	PICKUP 4X4 LEAF SPRING	21	TOY010CN/S	PICKUP 4X4 LEAF SPRING
10	HOLD006D	PICKUP 4X4 LEAF SPRING	22	TOY011B	PICKUP 4X4 LEAF SPRING
11	HOLD021B	PICKUP 4X4 LEAF SPRING	23	TOY011C	PICKUP 4X4 LEAF SPRING
12	HOLD021C	PICKUP 4X4 LEAF SPRING	24	TOY027A	PICKUP 4X4 LEAF SPRING

Applications

How Do Leaf Springs Help With Hauling And Towing?

Leaf springs are a critical component of most truck suspension systems, providing support to the vehicle while absorbing bumps, potholes and other impacts for a smooth ride. In addition to the weight of the truck, the springs help keep the body elevated when loaded with passengers and cargo and when pulling a trailer and other attachments. The unique, time-test design of leaf springs allows the suspension to adjust based on the current capacity and keep your truck at the right height and position.

What Solutions Does Carhome Spring Provide?

As the leaf springs and suspension authority in the industry, CARHOME Spring offers a variety of ways to increase the load capacity of your vehicle. We offer standard and heavy-duty leaf springs for towing and hauling heavy loads for just about any make or model of truck. We also provide custom design services to fit your exact specifications. In addition to leaf springs, we carry add-a-leaf kits to boost the strength of your suspension. If you're not sure which products you require, let us know and we'll help analyze your needs to identify the most efficient solution.

Reference

Provide different types of leaf springs which include conventional multi leaf springs, parabolic leaf springs, air linkers and sprung drawbars.
In terms of vehicle types, it include heavy duty semi trailer leaf springs, truck leaf springs, light duty trailer leaf springs, buses and agricultural leaf springs.

Leaf Springs Project

Production

How to measure!!!

Packing & Shipping

QC equipments

Our advantage

1) Raw Material

Thickness less than 20mm. We use material SUP9

Thickness from 20-30mm. We use material 50CRVA

Thickness more than 30mm. We use material 51CRV4

Thickness more than 50mm. We choose 52CrMoV4 as the raw material

2) Quenching Process

We strictly controlled the steel temperature around 800 degree.

We swing the spring in the quenching oil among 10 seconds according to the spring thickness.

3) Shot Peening

Each assembling spring set under stress peening.

Fatigue test can reach over 150000 cycles.

4) Electrophoretic Paint

Each item use electrophoretic paint

Salt spray testing reach 500 hours

Technical aspect

1、Product technical standards：implementation of IATF16949
2、More than 10 spring engineers' support
3、Raw material from the top 3 steel mills
4、Finished products tested by Stiffness Testing Machine, Arc Height Sorting Machine; and Fatigue Testing Machine
5、Processes inspected by Metallographic Microscope, Spectrophotometer, Carbon Furnace, Carbon and Sulfur Combined Analyzer; and Hardness Tester
6、Application of automatic CNC equipment such as Heat Treatment Furnace and Quenching Lines, Tapering Machines, Blanking Cutting Machine; and Robot-assitant production
7、Optimize product mix and reduce customer purchasing cost
8、Provide design support，to design leaf spring according to customer cost

Service aspect

1、Excellent team with rich experience
2、Think from the perspective of customers, deal with the needs of both sides systematically and professionally, and communicate in a way that customers can understand
3、7x24 working hours ensure our service systematical, professional, timely and efficient.
