Z Type Air Linker Air Suspension for Trailer Truck for Fuso

Short Description:

Part No.	FUSO 6M70 K REAR	Paint	Electrophoretic paint
Spec.	90×28	Model	Air Linker
Material	SUP9	MOQ	100 SETS
Bush Size	Ø24×Ø60×84	Development Length	1060
Weight	41.7 KGS	Total PCS	2 PCS
Port	SHANGHAI/XIAMEN/OTHERS	Payment	T/T,L/C,D/P
Delivery Time	15-30 days	Warranty	12 months

Send email to us

Product Detail

Product Tags

Detail

This item is suitable for FUSO Air Suspension Semi-Trailer

1. The oem number is FUSO 6M70 K REAR, the specification is 90*28, the raw material is SUP9

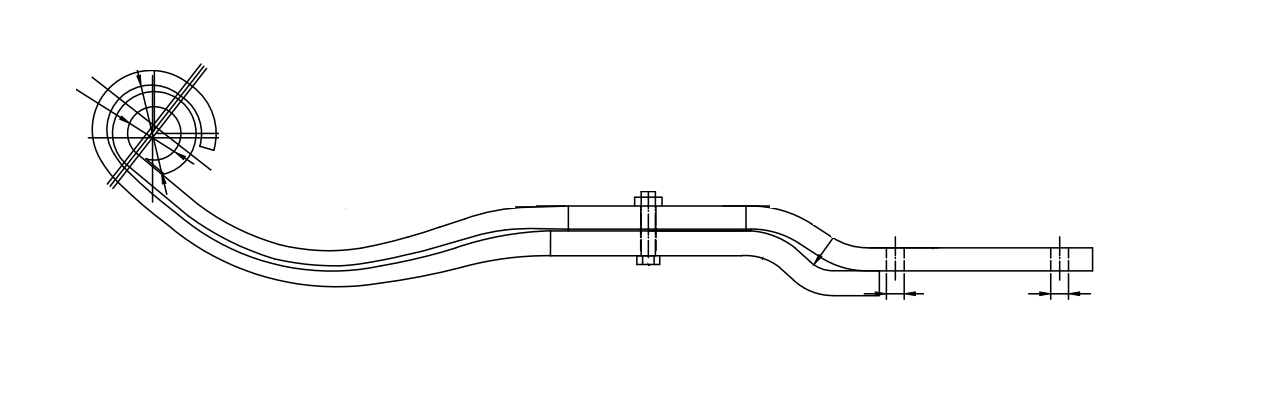

2. The item total has two pcs, first pcs with eye, the length from the centrl of the eye to the centrl hole is 560mm. The second pcs is Z type, the length from the cover to the end is 1060mm
3. The painting use electrophoretic painting, the color is drak grey
4. It use with air kit together is the air suspension
5. We also can produce base on client's drawings design

Air Linkers Part Numbers:

Item Number	Type	Specification(mm)	Length(mm)
508204260	BPW	100*22	1170
880305	BPW	100*27	1172
880301	BPW	100*19	1170
880300	BPW	100*19	1173
880312	BPW	100*18	930
880323	BPW	100*19	970
508213190/881360	BPW	100*50	940
881508	BPW	100*48	870
508212640/881386	BPW	100*38	975
880305	BPW	100*27	1220
880301	BPW	100*19	1220
880355	BPW	100*38	940
901590	SCANIA	100*45	950
1421061/901870	SCANIA	100*45	1121
1421060/901890	SCANIA	100*45	1121
508213240	BPW	100*43	1015
508213260	BPW	100*38	920
508212830	BPW	100*43	1020
508213560/881513	BPW	100*48	940
508213240/881366	BPW	100*43	1055
508213260/881367	BPW	100*38	930
508212670	BPW	100*38	945
508213360/881381	BPW	100*43	940
508213190	BPW	100*50	940
881342	BPW	100*48	940
508213670/881513	BPW	100*50	940
21222247/887701/ F260Z104ZA75	BPW	100*48	990
F263Z033ZA30	BPW	100*40	633
886162	BPW	100*48	900
886150/3149003602	BPW	100*38	895
887706	BPW	100*35	990

Applications

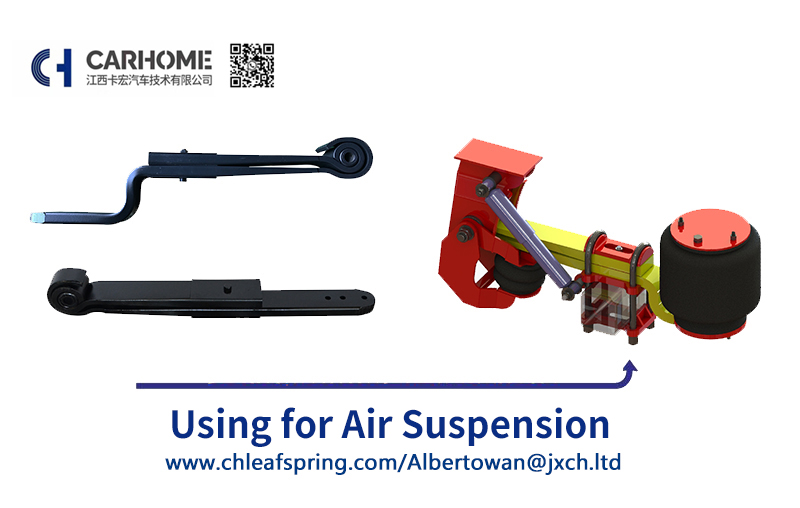

The Air Linker is mainly applicable to the automobile air suspension.

● It is usually composed of one or two spring leaves, which are used symmetrically with left and right.
● It is installed between the axle and the air suspension bracket.
● It is formed as a whole, and its structure includes a straight part, a bending part and a eye rolling part.
● The rolled eye is equipped with a rubber composite bushing.
● The common material specifications of the guide arm are from 90 to 100 mm in width and from 20 to 50 mm in thickness.

About Leaf Springs

● Leaf springs are the most cost efficient suspension solutions for commercial vehicles.
● Despite of the fact that the history of leaf springs started more than 100 years ago, we can find leaf springs in the latest modern commercial vehicles.
● Leaf springs on commercial vehicles are not standardised parts therefore each vehicle manufacturer develops own solutions and on one vehicle platform several different variants are used.
● The results of this is a huge number of article numbers on the market. From technical point of view, leaf springs have three main types.
● Air linkers (often said trailing arms, linker springs or beam springs) are used together with air suspension. They are also a special type of parabolic springs.

Possible Problems With Leaf Spring: Why Leaf Springs Might Break Sometimes?

There can be several reasons:

1、material problems (inclusions in spring steel, surface problem);
2、leaf spring production mistakes (wrong heat treatment, microcracks or grooves on surface);
3、service installation problems (U-bolt nuts are not tightened);
4、usage (spring surface damaged during usage, bad road conditions, overload of vehicle) and many more.

Reference

Provide different types of leaf springs which include conventional multi leaf springs, parabolic leaf springs, air linkers and sprung drawbars.
In terms of vehicle types, it include heavy duty semi trailer leaf springs, truck leaf springs, light duty trailer leaf springs, buses and agricultural leaf springs.

Leaf Springs Project

Production

How to measure!!!

Packing & Shipping

QC equipments

Our advantage

1) Raw Material

Thickness less than 20mm. We use material SUP9

Thickness from 20-30mm. We use material 50CRVA

Thickness more than 30mm. We use material 51CRV4

Thickness more than 50mm. We choose 52CrMoV4 as the raw material

2) Quenching Process

We strictly controlled the steel temperature around 800 degree.

We swing the spring in the quenching oil among 10 seconds according to the spring thickness.

3) Shot Peening

Each assembling spring set under stress peening.

Fatigue test can reach over 150000 cycles.

4) Electrophoretic Paint

Each item use electrophoretic paint

Salt spray testing reach 500 hours

Technical aspect

1、Product technical standards：implementation of IATF16949
2、Flat bar suppliers from top 3 steel mills in China
3、Finished products tested by Stiffness Testing Machine, Arc Height Sorting Machine and Fatigue Testing Machine，etc
5、Processes inspected by Metallographic Microscope, Spectrophotometer, Carbon Furnace, Carbon and Sulfur Combined Analyzer and Hardness Tester, etc
6、Application of automatic CNC equipment such as Heat Treatment Furnace and Quenching Lines, Tapering Machines, Cutting Machine and Robot-assitant production, etc
7、Leaf length tolerance (mm): ±2 (Exceed spring industry standard ±3)
8、Camber tolerance (mm): ≤±6 (Exceed spring industry standard ±7)

Service aspect

1、Excellent team with rich experience
2、Think from the perspective of customers, deal with the needs of both sides systematically and professionally, and communicate in a way that customers can understand
3、As a one-stop springs supplier, provides a variety of springs: width range from 44.5mm to 125mm and a thickness range from 6mm to 50mm; not only conventional springs and parabolic springs, but also air linkers and sprung drawbars; springs applied to including trucks, trailers, semi-trailers, buses and agricultural vehicles; for both OEM and aftermarket. At the same time spring parts such as bushings, center bolts and flat bars are also available.
4、7x24 working hours ensure our service systematical, professional, timely and efficient.
